Lixada 2.4G ISM DMX512 Wireless Male XLR LED Transmitter in kumasi

Product information

Description

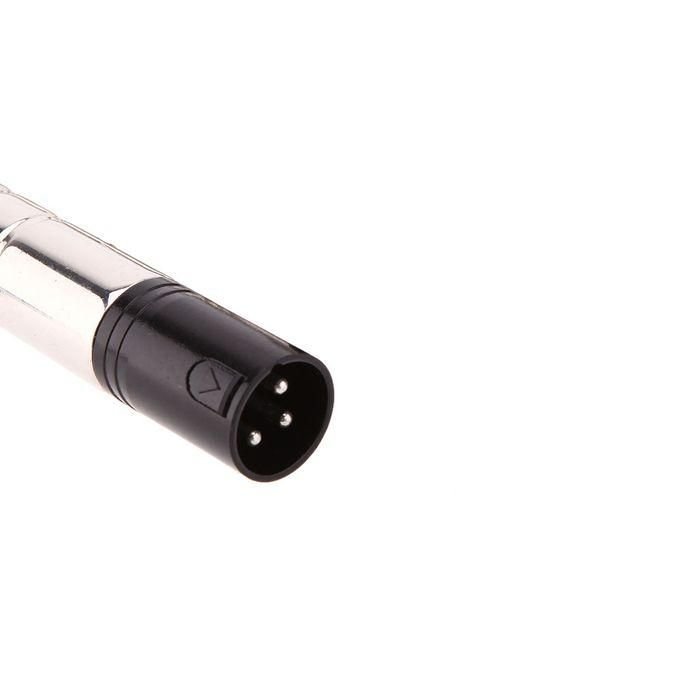

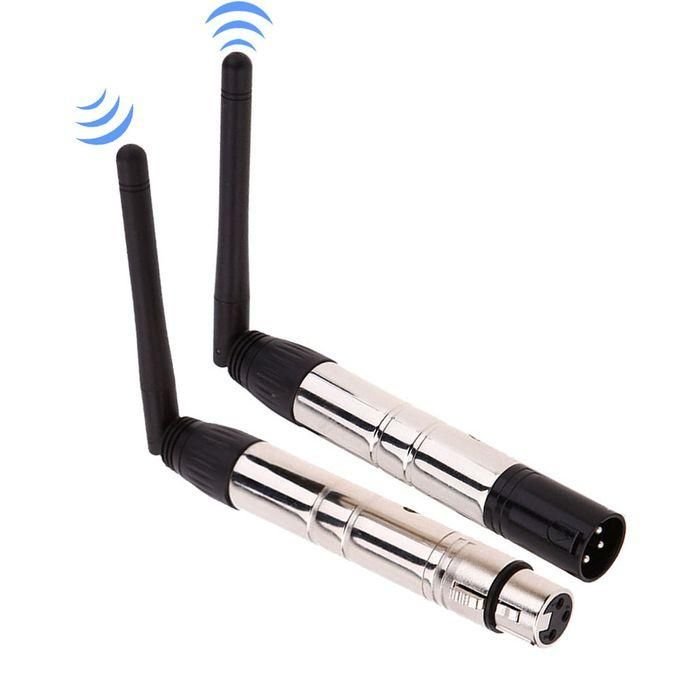

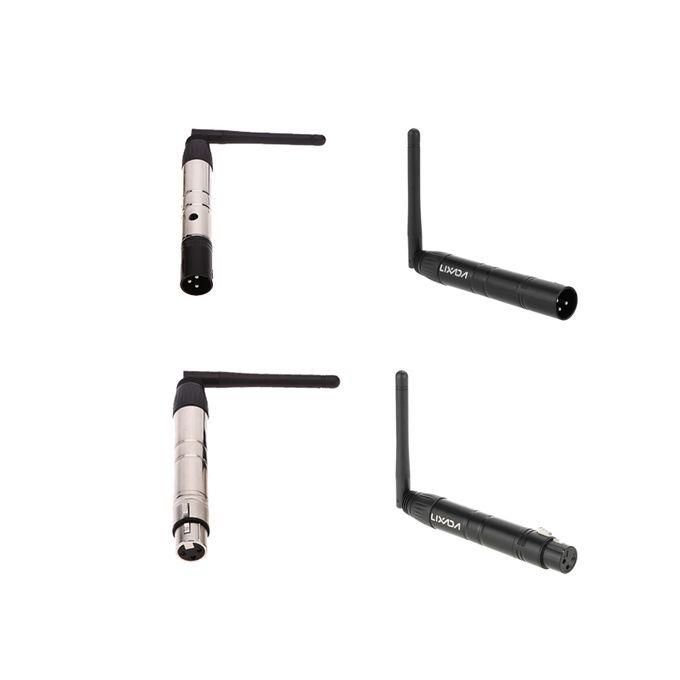

Lixada 2.4G ISM DMX512 Wireless Male XLR Transmitter LED Say goodbye to cluttered wires with the Lixada 2.4G ISM DMX512 Wireless Male XLR Transmitter. This innovative wireless transmitter allows you to transmit standard DMX512 protocol data from your console seamlessly and efficiently. Features Wireless Transmission : Transmits DMX512 protocol data wirelessly without any time delay, ensuring real-time and reliable signal data. 2.4G ISM Frequency : Operates on a robust 2.4G ISM frequency section. High Efficiency : Utilizes GFSK modulation for effective communication with 126 channels that jump frequency automatically for enhanced reliability. Multiple ID Codes : Supports 7 groups of ID codes, allowing users to create individual wireless networks without interference in the same location. (Tricolor LED indicators display status.) Specifications Type : 2.4G Wireless DMX512 R/T Input Voltage : 5VDC 500mA MIN Receive Sensitivity : -94dBm Max Transmitting Rate : 20dBm DMX Connector : 3-pin male Communication Distance : Up to 400M (visible distance) Frequency Section : 2.4G ISM, 126 channels Plug Standard : US / EU (optional) Material : Zinc alloy + plastic Item Size : 21 x 2.5 x 2.5 cm (8.26 x 0.98 x 0.98 in) (1 pc) Package Size : 14.5 x 10.5 x 4.5 cm (5.7 x 4.13 x 1.77 in) Package Weight : 180g (6.36 oz) Operating Manual ID Code and LED Color Correspondence ID Code LED Color 1 RED 2 GREEN 3 RED + GREEN 4 BLUE 5 RED + BLUE 6 GREEN + BLUE 7 RED + GREEN + BLUE Setup Instructions ID Setting : Press the momentary switch above the LED indicator to indicate ID setting. Press again to choose the desired ID color, advancing the ID code with each press. Working Conditions : LED Constantly Lit : No DMX or wireless signal detected. Red LED Flashing : Transmitting. Green LED Flashing : Receiving. RF Frequency : Operates between 2.400 – 2.525G with a total of 126 channels, automatically searching. ID Code Setup : Use the ‘KEY’ button to set the same ID code on both the transmitter and receiver (must match color LED). For multiple wireless universals, use different ID codes. Establishing Communication Start with the DMX512 wireless receiver, followed by the transmitter. Use the “Key” button to set the same ID value on both the transmitter and receiver. The red LED will flash during transmission, while the receiver will switch to the communicated frequency section; the green LED will flash until the same ID value is received. Faster DMX data will cause the LED to flash more quickly. Once communication is established correctly, both devices will sync. Package Includes 1 x DMX Wireless Transmitter 1 x Adapter 1 x Specification (English) With the Lixada 2.4G ISM DMX512 Wireless Transmitter, enjoy a hassle-free wireless lighting control system!

At a glance

Specifications

Brand

Not specified

SKU

Not specified

Category

Musical Instruments

Availability

In stock
