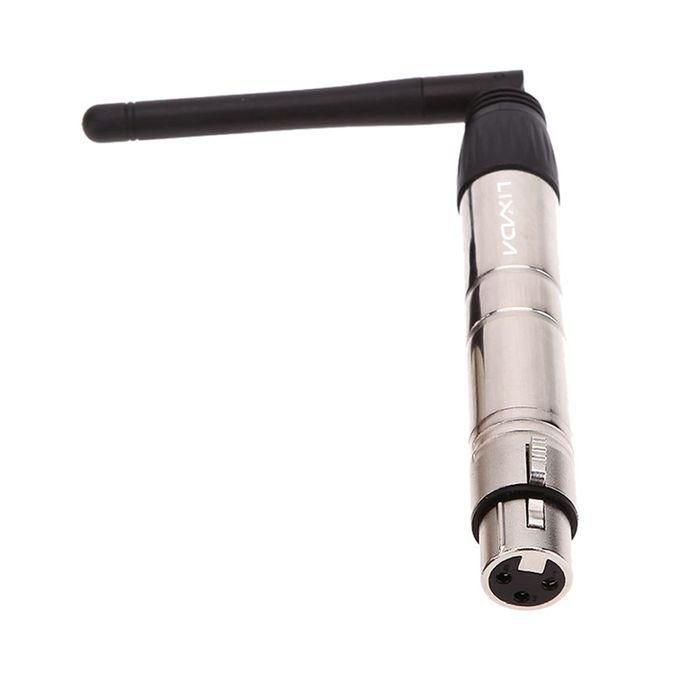

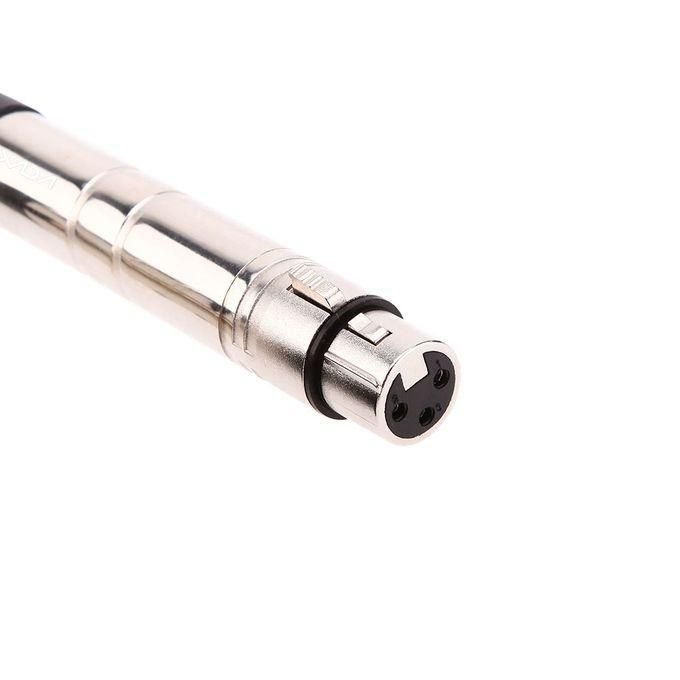

Lixada 2.4G ISM DMX512 Wireless XLR Female Receiver for LED in kumasi

Product information

Description

Lixada 2.4G ISM DMX512 Wireless Female XLR Receiver LED Say goodbye to tangled wires with the Lixada 2.4G ISM DMX512 Wireless Female XLR Receiver . This innovative wireless receiver allows seamless transmission of DMX512 protocol data without the hassle of cables. Features Wireless Transmission: Transmits standard DMX512 protocol data generated by your console wirelessly. Real-Time Data: Experience no time delay in signal transmission for real-time and reliable performance. 2.4G ISM Frequency: Operates on a 2.4G ISM frequency section, ensuring efficient communication. Automatic Frequency Hopping: With 126 channels that hop automatically, maintain high communication reliability. Multiple ID Codes: Settable ID codes allow for 7 individual wireless networks to operate without interference in the same location. (Tricolor LED indicators display statuses) Specifications Type: 2.4G Wireless DMX512 R/T Input Voltage: 5VDC, 500mA MIN Receive Sensitivity: -94dBm Max Transmitting Rate: 20dBm DMX Connector: 3-pin female Communication Distance: Up to 400M (line of sight) Work Frequency Section: 2.4G ISM with 126 channels Plug Standard: EU Material: Zinc alloy + plastic Item Size: 21 x 2.5 x 2.5 cm (8.26 x 0.98 x 0.98 in) Package Size: 14.5 x 10.5 x 4.5 cm (5.7 x 4.13 x 1.77 in) Package Weight: 180g (6.36 oz) Operating Manual ID Code and LED Color Correspondence 1: RED 2: GREEN 3: RED + GREEN 4: BLUE 5: RED + BLUE 6: GREEN + BLUE 7: RED + GREEN + BLUE Setup Instructions Press the momentary switch located above the LED indicator to initiate ID setting. Press again to set the desired color ID; each press advances the ID code by 1. Working Conditions: LED constantly lit: No DMX or wireless signal. Red LED flashing: Transmitting. Green LED flashing: Receiving. RF Frequency: 2.400 – 2.525G across a total of 126 channels, which search automatically. ID Code: Groups 1-7 can be set; both transmitter and receiver must be set to the same ID code (same LED color) to work together. Establishing Communication Power on the DMX512 wireless receiver first, then turn on the transmitter. Press the “Key” button to match the ID values of the transmitter and receiver. Use different ID values to operate multiple wireless units in the same location. The red LED will flash when the transmitter sends DMX data on an unoccupied frequency. The receiver will adjust its communication frequency accordingly. The green LED will flash until the same ID value is received; faster DMX data results in quicker LED flashes. Communication is successfully established. Package List 1 x DMX Wireless Receiver Unit 1 x Adapter 1 x User Manual (English) Transform your setup with the Lixada 2.4G ISM DMX512 Wireless Receiver for a cleaner, more efficient lighting control experience!

At a glance

Specifications

Brand

Not specified

SKU

Not specified

Category

Musical Instruments

Availability

In stock
